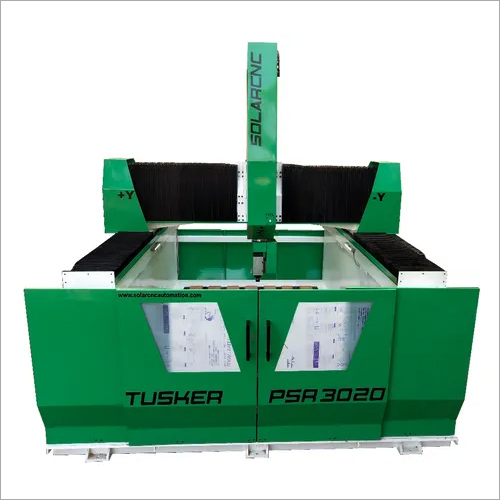

5 Axis CNC Pattern Router Machine About
A 5 Axis CNC Pattern Router Machine is a high-precision machining system designed for cutting, carving, trimming, engraving, and shaping complex 3D patterns and components. It can move simultaneously along five axes, allowing it to machine intricate geometries with excellent accuracy and surface finish.
5 Axis CNC Pattern Router Machine Manufacturer in Vadodara
5 Axis CNC Pattern Router Machine Manufacturer in Gujarat
5 Axis CNC Pattern Router Machine Manufacturer in India
5 Axis CNC Pattern Router Machine Manufacturer
5 Axis CNC Pattern Router Machine Manufacturer Near me
5 Axis CNC Pattern Router Machine Supplier in Vadodara
5 Axis CNC Pattern Router Machine Supplier in Gujarat
5 Axis CNC Pattern Router Machine Supplier in India
5 Axis CNC Pattern Router Machine Supplier in Near me
5 Axis CNC Pattern Router Machine Supplier
Key Features:
Simultaneous 5-axis machining for complex 3D designs
Heavy-duty, rigid machine structure
High-speed CNC spindle for efficient cutting
Automatic Tool Changer (ATC) for continuous operation
High positioning and repeatability accuracy
User-friendly CNC control system
Suitable for wood, EPS foam, MDF, plastic, resin, aluminum, and composite materials
Dust collection and cooling system options
Low maintenance and high productivity
Applications:
Automotive prototype and pattern making
Foundry patterns and molds
Aerospace components
Wooden furniture and decorative carving
Sculpture and artistic 3D carving
Composite and plastic component machining
Mold and die manufacturing
Benefits:
Produces complex shapes with precision
Reduces manual labor and production time
Improves product quality and consistency
Increases manufacturing efficiency
Ideal for industrial and custom production applications
High-Precision, Advanced 5-Axis CapabilitiesAchieve intricate patterns and molds with simultaneous 5-axis motion, allowing detailed cuts and complex geometries unattainable by standard routers. The high rigidity structure and high-torque servo motors work together to provide exceptional accuracy, with repeatability down to 0.01 mm even on large workpieces. Automatic tool changing and water-cooled spindle technology ensure efficient and reliable operation for extended periods.
Comprehensive Automation and ConnectivityEnhance your workflow with a fully automatic, computerized system equipped with a user-friendly touchscreen HMI panel. The CNC router connects easily via USB and LAN, streamlining file transfers and supporting effortless integration with your existing production environment. Compatibility with leading CAD/CAM systems and industrial dust collection keeps your operation efficient and clean.
Industrial Versatility and CustomizationFrom wood and plastic to foam and non-ferrous metals, this machine handles diverse materials across various industries. With a customizable table size and heavy-duty capacity, it is perfect for manufacturers, exporters, and industrial prototyping specialists. The robust construction and advanced safety features offer reliable performance in demanding settings, while PLC controls guarantee automation readiness.
FAQ's of 5 Axis CNC Pattern Router Machine:
Q: How does the 5 Axis motion improve pattern and mould making?
A: The simultaneous 5-axis motion allows the router to approach the workpiece from multiple angles, enabling the creation of intricate designs, undercuts, and complex geometries that are difficult or impossible with 3-axis machines. This results in superior quality molds and patterns, enhancing both detail and efficiency.
Q: What materials can be processed with this CNC router?
A: The machine is versatile enough to handle a variety of materials, including wood, foam, plastic, and non-ferrous metals. Its powerful spindle (up to 12 kW) and customizable table size make it suitable for small precision tasks as well as large-format, heavy-duty projects.
Q: What software is compatible with this router?
A: This 5 Axis CNC Pattern Router Machine supports a wide range of CAD/CAM software, ensuring smooth design-to-production transitions. Software compatibility enables complex toolpath generation and streamlines the workflow for advanced manufacturing tasks.
Q: When should automatic tool changing be used?
A: Automatic Tool Changer (ATC) is ideal for operations that require multiple tool changes during a job, enhancing productivity by minimizing manual intervention and reducing machine downtime. It is especially helpful during complex or multi-faceted pattern work.
Q: Where can this CNC router be installed, and what are its environmental requirements?
A: This machine is suitable for factories, industrial prototyping labs, and large workshop settings. It operates reliably in temperatures from 0C to 45C, requiring a 415V AC, 3-phase power supply, and an environment that can accommodate its industrial size and approximate 4000 kg weight.
Q: How does the integrated safety mechanism protect operators?
A: Safety features such as limit switches and emergency stop buttons help prevent accidents and protect both the operator and the machine. Automatic lubrication, dust collection compatibility, and touch-screen control also contribute to safer, cleaner, and more reliable operations.
Q: What are the main benefits of using this 5 Axis CNC router for industrial applications?
A: Users benefit from high precision (repeatability to 0.01 mm), automation readiness, advanced cutting capabilities, and the ability to handle heavy-duty tasks. Its robust design and modern connectivity options improve productivity, reduce manual labor, and expand the range of potential applications in manufacturing and prototyping.
