About 5 Axis CNC Router
In our set of CNC router and wood carving machines, you can find this 5 axis CNC router that enables 5 axis CNC machining. This is a high-speed precision machine that use cutting tools to remove material. This machine as the very name implies can move the part in 5 different axes at a same time. It can perform complex machining through its three linear axes and two rotational axes. It is better than a 3-axis CNC router as it can complete a job in one set-up, rather many set-ups. It is great for achieving complex designs, quickly removing material, achieving better surface finish and saving time.
5 Axis CNC Router Specification
|
Job Material
|
Wood, stone, composites, plastics, foams
|
|
Operation Mode
|
Automatic
|
|
Power
|
12 Kw
|
|
Max Job Size
|
2500x1250
|
|
Brand
|
SOLARCNC
|
|
Spindle Power
|
7.5 Kw
|
|
Spindle Speed
|
18000 RPM
|
|
Voltage
|
415
|
|
Reposition Accuracy
|
+/- 0.1
|
|
Weight
|
6500
|
|
Table Size
|
3200x2200
|
|
Warranty
|
1 year
|
|
Minimum Order Quantity
|
1 Unit
|
Product Description

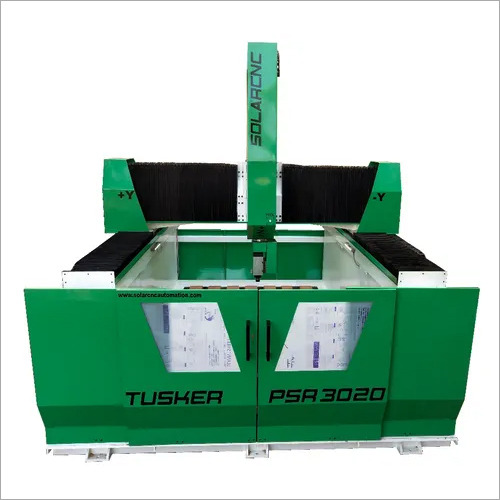

TUSKER 5X series of 5 axis CNC Routers Model PSR 3020
Table Size : 3200 mm X 2200 mm
X : 3000 mm
Y : 2000 mm
Z : 600 mm
Spindle Nose to Table Top : 0 - 600 mm
Spindle Power : 7.5 KW
Spindle RPM : Upto 18,000
Spindle Taper : HSK 63
Tool Change : Push button
Rapid Traverse : 15,000 mm / min
Max.Cutting Feed : 10,000 mm / min
Axis Motors : Servo on All Axes ( 4 Qty )
CNC Control : SIEMENS / FANUC / MITSUBISHI
Overall Dimension L x W x H : 6000x5000x2500 mm ( Approx. )
Lubrication : Centralized Oil Lubrication with Automatic Pump
Coolant : NA
Machine Weight (Approx. in Kg) : 6500
Application ( attuned on Material) : Wood, MDF, Foams, Thermocol, Plastics, Stone etc.
Optional Accessories:
Sliding doors at front and back
Bellow covers for X and Y axis
Additional Information
Advanced 5 Axis MachiningUnlock the potential of multi-dimensional manufacturing with the 5 Axis CNC Router. Its advanced precision allows for intricate cuts and complex shapes, making it suitable for detailed industrial applications. This router's flexibility minimizes manual repositioning, boosting productivity and reducing errors. The robust stainless steel build ensures longevity, even with continuous, heavy-duty operation.
Reliable, High-Speed PerformanceEquipped with a spindle speed of 18,000 RPM and full automation, this CNC Router excels in delivering rapid, accurate results every time. Its large dimensions accommodate sizeable workpieces, and the durable construction ensures long-term reliability. The hydraulic power source further guarantees consistent operation, even under substantial loads.
FAQ's of 5 Axis CNC Router:
Q: How is the 5 Axis CNC Router set up in an industrial workspace?
A: The 5 Axis CNC Router is delivered pre-assembled, requiring only proper placement, power connection (220-440V), and hydraulic setup. Its sizeable footprint (6000x5000x2500 mm) and 6,000 kg weight mean installation should be on a stable, reinforced floor, ideally handled by professionals.
Q: What materials can this CNC Router process efficiently?
A: Constructed from stainless steel and designed for industrial use, this router is compatible with a wide variety of materials, such as metals, plastics, and composite materials, depending on the chosen tool and spindle speed settings.
Q: When should routine maintenance be performed on the router?
A: Routine maintenance is recommended every 250 operational hours or monthly, whichever comes first. This includes checking hydraulic fluid, inspecting moving parts, and ensuring the spindle operates at optimal efficiency for high-precision output.
Q: Where is this CNC Router manufactured and supplied from?
A: This 5 Axis CNC Router is manufactured, exported, and supplied from India, ensuring local support and export capabilities for international customers.
Q: What is the operational process of the 5 Axis CNC Router?
A: Once set up, the machine operates automatically via pre-programmed instructions. The hydraulic power source drives precise movements along five axes, allowing complex profiles to be machined with minimal manual intervention.
Q: How does computerized functionality affect the router's usage?
A: While this CNC Router is not computer-integrated, it relies on precise manual or external programming input for operation, ensuring control remains straightforward for skilled operators.
Q: What are the key benefits of using this 5 Axis CNC Router in manufacturing?
A: The main advantages include high precision, reduced production time due to automation, the ability to machine complex shapes, and enhanced durability backed by a warranty. This makes it an excellent investment for high-volume, quality manufacturing.
