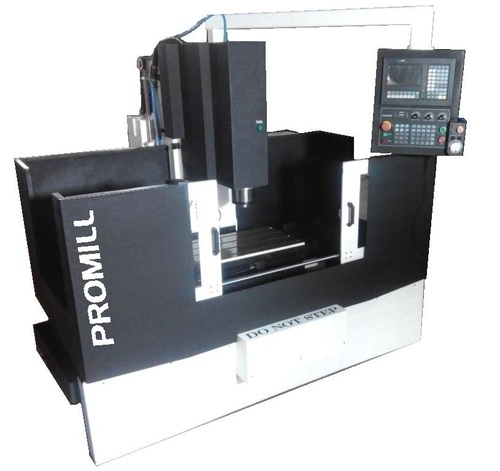

CNC Milling Machine

Name: CNC Milling Machine
Brand: SOLAR CNC AUTOMATION
Price: 1650000 INR
Availability: InStock

Price 649000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CNC Milling Machine Specification

Product Type
CNC Milling Machine

General Use
Industrial

Material
Stainless Steel

Type
Vertical

Automatic
Yes

Power Source
Hydraulic

Voltage
220-440 Volt (v)

Feature
Low Energy Consumption

Warranty
1 Year

CNC Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About CNC Milling Machine

Trailing the latest market developments and predefined international quality standard, our organization is affianced in manufacturing, exporting and supplying a wide assortment of CNC Milling Machine. This machine is actively used in numerous industries for performing both drilling and cutting functions. The entire range is processed at our in-house production unit while selecting an excellent grade of basic material, upgraded machine and sophisticated techniques. It is frequently checked on diverse constraints under the strict guidance of our quality controllers to maintain the quality.

CNC Milling Machine Features:

Good functionality
Superior surface finish
Non corrosive

CNC Milling Machine Specifications:

Structure	Cast Iron
Axis Motion	L.M. Guide-ways with ground ball screws on all axes (Hiwin make)
Table Size	600 x 400 mm
Table Load	300 Kg
Traverse
X	500 mm
Y	350 mm
Z	350 mm
Spindle Nose to Table Top	50 - 400 mm
Spindle	Belt driven air cooled
Power	3.7 / 5.5 Kw (Cont. / 30Min)
RPM	8000 RPM (indefinitely variable)
Taper	BT 40
Tool change	Hydro-pneumatic
Feed Rates
Rapid Traverse	10000 mm / min
Max. Cutting Feed	5000 mm / min
Accuracy
Positional	+/-10 microns over 300 mm stroke
Repeatability	+/-5 microns
CNC Controller	ADTECH / SIEMENS / MITSUBISHI
Guarding
Lubrication	Centralized oil lubrication system
Coolant	Re-circulating with 150 Ltrs tank
Air Pressure Requirement	7 Bar
Power Requirement	7 KVA
Machine Weight	2200 Kg (approx)
Standard Features 1. Brake type servo motor for Z axis 2. Telescopic covers 3. Removable chip trays (2 Nos.) 4. Machine lamp 5. CNC with USB and RS 232 interface	6. Air and coolant gun 7. Programming and maintenance manuals 8. Mechanical Counterweight for Z axis

Energy-Efficient Industrial Performance

Engineered with low energy consumption in mind, our vertical CNC Milling Machine supports industrial-scale production while reducing operational costs. The stainless steel construction ensures longevity, even under continuous heavy-duty use. Suitable for varied voltages, it offers flexibility and reliability in manufacturing applications.

Hydraulically Powered Automation

Maximize output with hydraulic power and full automation. This machine not only speeds up your manufacturing process but also delivers precise milling results every time. The automatic operation lessens manual intervention, saving time and streamlining workflow for busy factories and workshops.

FAQ's of CNC Milling Machine:

Q: How does the automatic feature of this CNC Milling Machine benefit industrial users?

A: The automatic operation minimizes manual intervention, boosting productivity and delivering consistent, high-precision milling results. This ensures efficiency and reduces labor costs for industrial users.

Q: What voltage range is required to operate the CNC Milling Machine safely?

A: This machine supports a wide voltage range from 220 to 440 Volts, making it adaptable to various industrial power supply setups commonly found in manufacturing environments.

Q: When should the machine undergo routine maintenance?

A: It is advisable to perform routine maintenance as outlined in the user manual or at regular intervals determined by the manufacturer's recommendations. Regular checks ensure prolonged performance and reduce the risk of unexpected downtime.

Q: Where is this CNC Milling Machine available for purchase?

A: You can source this CNC Milling Machine directly from trusted exporters, manufacturers, suppliers, and wholesalers across India. It is distributed to industrial clients both domestically and internationally.

Q: What is the process for starting up and shutting down the CNC Milling Machine safely?

A: Follow the provided operation manual closely. Startup involves checking power connections, ensuring hydraulic fluid levels, and initiating the automated system. Shutdown requires halting operations, disconnecting the power, and following safety protocols outlined by the manufacturer.

Q: How is the stainless steel construction advantageous for industrial use?

A: Stainless steel offers excellent durability and resistance to corrosion, making the machine robust in demanding industrial settings and ensuring a longer operational lifespan.

Q: What usage does this CNC Milling Machine best serve in industrial settings?

A: It is ideal for precision milling operations in large-scale manufacturing, automotive, aerospace, and other industries where efficiency, accuracy, and repeatability are crucial.
